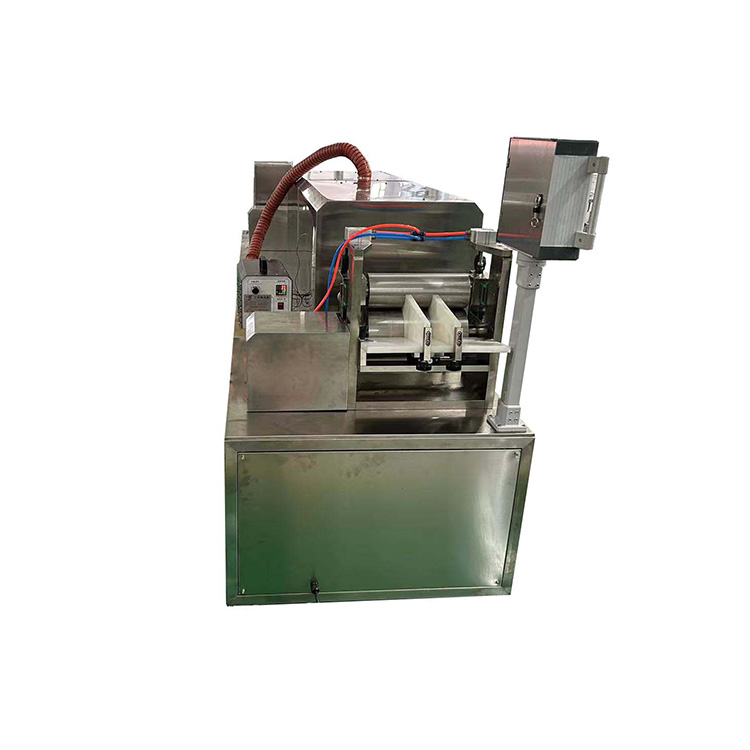

Oral dissolving films manufacturing machine

PPD-ODFM1

Oral dissolving films manufacturing machine is the latest equipment developed by our company for producing oral dissolving films.Oral dissolving film is a new type of oral drug delivery system developed based on transdermal patch technology. It can be placed in the mouth without drinking water or chewing, and can decompose or dissolve within 1 minute. Especially suitable for pediatric, elderly, and special disease populations.
Oral dissolving films are becoming increasingly popular in the fields of fresh breath and pet care and beauty.
It can also work as oral freshener film making machine.

Features:

1.Adopting PLC programmable controller, servo technology, and our newly developed technology software system core to control the overall operation of the machine; Bottom paper (film) traction, servo drive, high precision, stable operation; The film winding adopts an adaptive slip method, with stable tension for both large and small rolls and simple operation.

2.Independent oven (external heating machine, hot air circulation drying): segmented temperature control adjustable.

3.Using precision coating rollers for measurement.

4. Automatic infusion system: automatically detects the liquid level in the tank, and automatically delivers the medication to the tank when it is below the liquid level.

Production process:

Place the medicine into the storage tank→transfer the medicine into the liquid tank→apply→dry and solidify→roll up.

Machine data:

Machine name:Oral dissolving films manufacturing machine

Machine model:PPD-ODFM1

Coating width:max to 300mm

Coating thickness:0.02-0.1mm

Coating speed:0.01-1m/minute (depending on different products)

Bottom support substrate width:360mm,Φ≤350mm,paper tube inner diameter 76.2mm

Total power:380v 50Hz,motor1.5KW,heating16KW

Gas consumption:≥30m3/h(self provided),pressure:0.6-0.8Mpa

Machine weight:1800 kg
