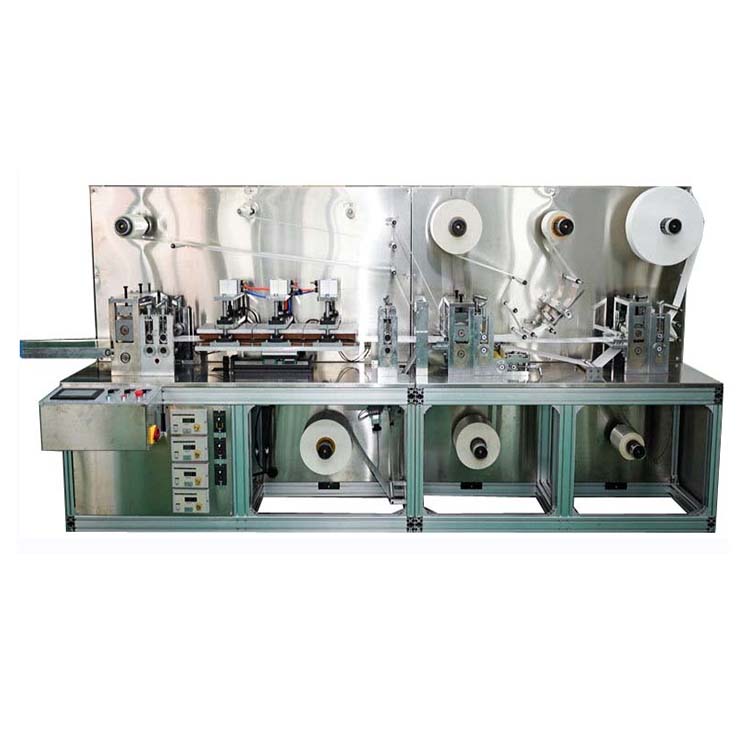

PU wound dressing making machine

PPD-PU100

PU wound dressing making machine is a PU wound dress making machine developed by our company based on the fully automatic wound dressing manufacturing machine.
PU wound dressing making machine completes the continuous rolling cutting, lamination,forming cutting,and automatic packaging of tape, cotton, and release paper. Suitable for processing PU waterproof dressings, packaging non-woven fabric dressings, wound dressings, self-adhesive sterile dressings, infusion dressings, indwelling needle dressings, bottle mouth dressings, acne dressings, eye and nose dressings and other application products.

Working process:

1. Adhesive tape on machine → tape lamination and peeling → 2. Water absorption pad roller cutting → pasting onto tape → 3. Left and right release paper folding and laminating → 4. Roll cutting and forming → 5. Apply into bag → Automatic bag making and sealing packaging → Output finished product (automatic production date and batch number printing for roll materials)

Features:

1. With advanced servo technology as the core, the PLC programmable controller intelligently controls the operation of the entire machine, with advantages such as pasting, film feeding, stable material transmission, and bag cutting.

2. Dual packaging material storage rack, suitable for paper+film, paper+paper bag making methods.

3. Independent pillar type mold frame and mobile synchronous heat sealing system, with a more uniform and stable sealing surface temperature, resulting in better instantaneous sealing effect. Packaging materials with different thicknesses and materials have a wider adaptability.

Machine data:

Machine name:PU wound dressing making machine

Machine model:PPD-PU100

Pack Material Diameter: Max400 mm

Pack Material Width: Max200 mm

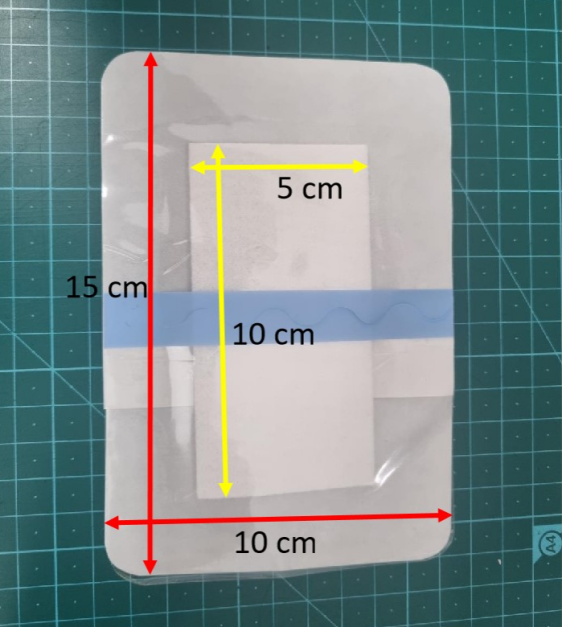

Wound dressing size: 150*100mm(option)

Outside packaging size: 200*150mm(option)

Roll ID: 76mm

Speed: 60-100pcs/min

Voltage: 220v,50HZ,6kw

Machine size:3500*1100*1800mm(LWH)

NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
