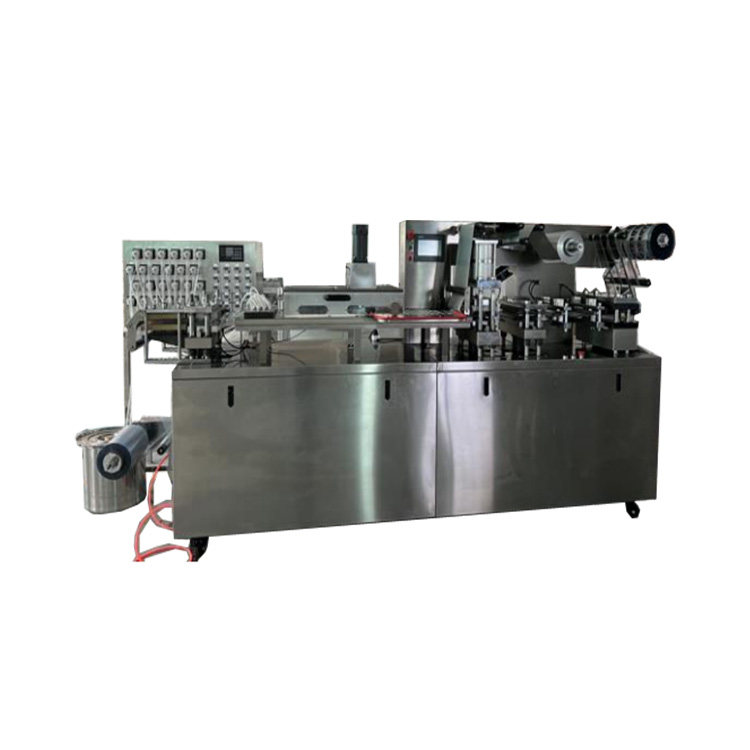

Alcohol cotton ball bubble wrap packaging machine

Features:

1. PLC&Servo motor control,accurate and stable running.

2. It adapted the eye mark sensor tracking.

3. Adapted HMI,easy operation and maintenance The driving length can be set in touch screen.

Machine data:

Machine name:Alcohol cotton ball bubble wrap packaging machine

Machine model:PPD-ACBP40

Punching frequency:20-40 times/minute

Production capacity:9600 boards/hour (140x65 boards)

PVC hard sheet:0.15-0.5 * 280mm (maximum diameter 450)

PTP aluminum foil:0.02-0.035 * 280 mm (maximum diameter 450)

Dialysis paper:50-100g * 280mm (maximum diameter 450)

Mold cooling:tap water or circulating water

Maximum forming area and depth:285 * 120 * 26mm

Standard travel range:20-125m (can be designed according to customer requirements)

Standard section:140x65mm=3 boards (can be designed according to customer requirements)

Air pressure:0.6-0.8mpa

Total power supply:380V 50Hz 8Kw

Main electrode power:3.7Kw

External dimensions:3560 * 750 * 1599 millimeters (mm)

Weight: 1500 kilograms (Kg)

Noise index:<70dBA

NOTE:ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
