4 Side Seal&Pack Machine

Features:

1.PLC control,servo drive operation,color touch screen parameter setting, easy operation.

2.Segmented independent ovens,each oven temperature is independently controlled and adjustable,and the number of ovens is determined according to customer requirements.

3.The automatic mouth melting liquid system is optional.

Production process:

Probiotic oral dissolving film the liquid tank→apply→dry and solidify→roll up.

Machine data:

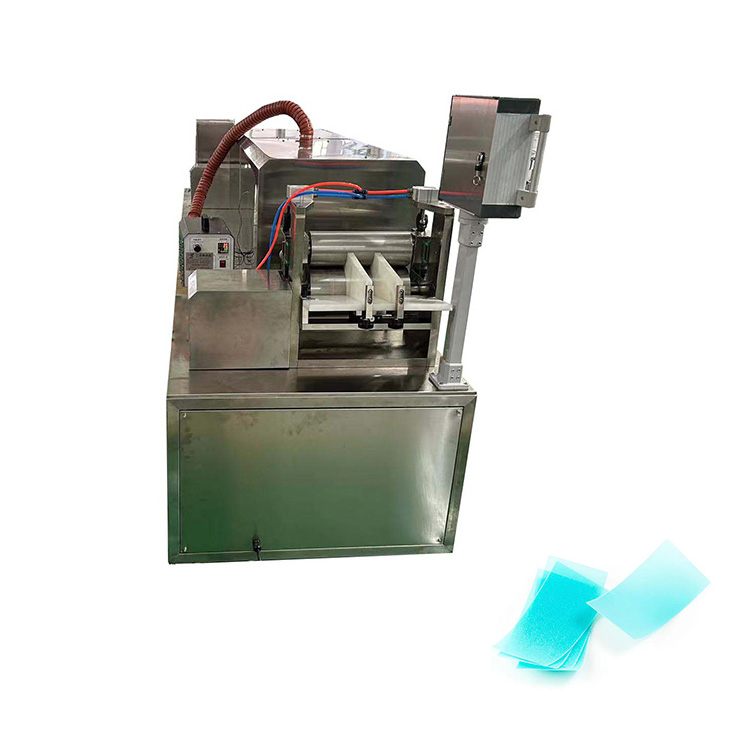

Machine name:Probiotic oral dissolving film coating machine

Machine model:PPD-PODFC300

Coating width:max 300mm

Product thickness:0.02-0.1mm

Speed:0.01-1m/minute (depending on different products)

Bottom film width:max 360mm,OD≤350mm,ID 3inch

Power:motor1.5KW,heater16KW

Voltage:220v,50hz

Gas consumption:≥30m3/h(self provided),pressure:0.6-0.8Mpa

Machine weight:1800 kg

Dimensions:L5300mm*W1310mm*H1750mm

NOTE:ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
