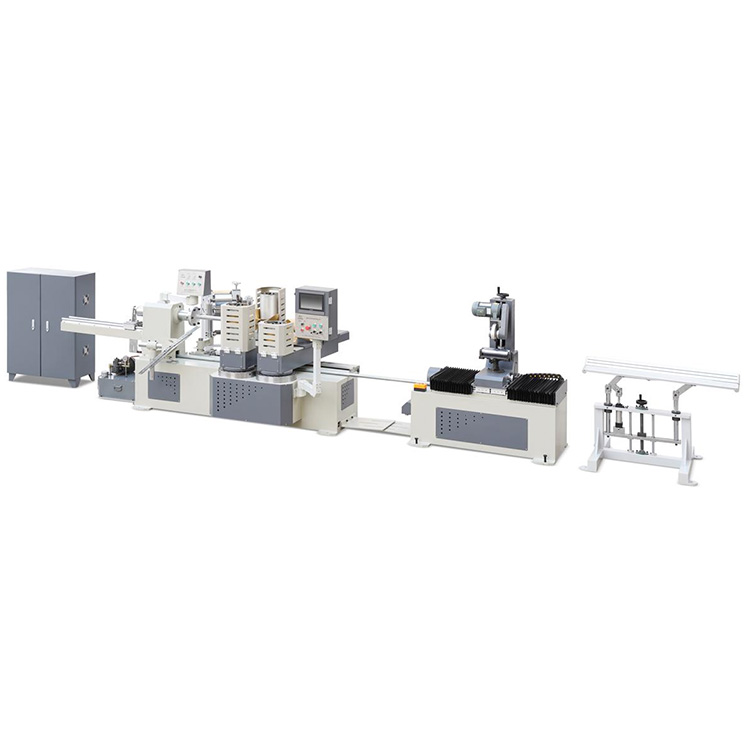

Servo controlled paper tube making machine

PPD-SCPM16

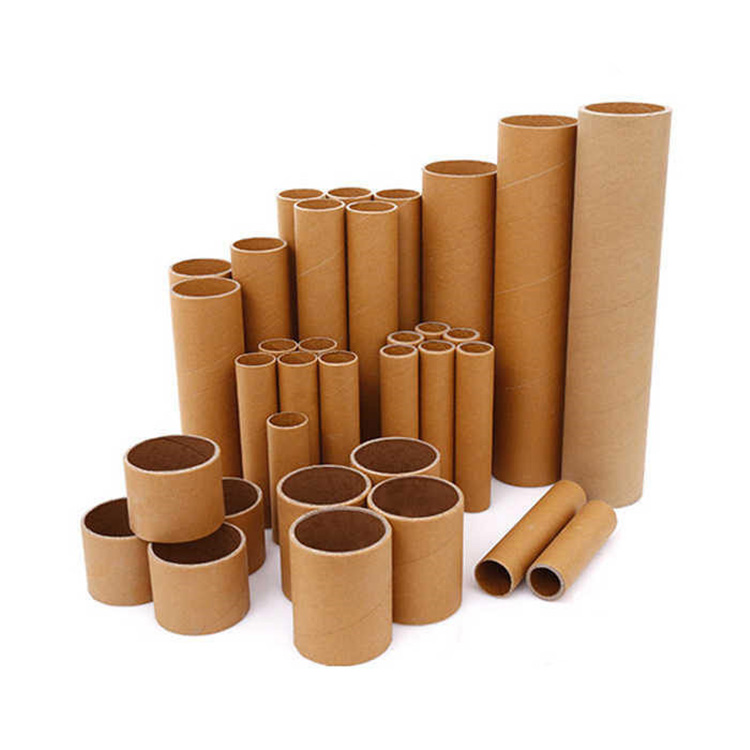

Servo controlled paper tube making machine is our popular machine to produce paper tubes.This machine is controlled by servo motor and can produce paper tubes and paper cores of different lengths and different inner diameters.

Features:
1.Four Heads Double Belts Spiral Winding,high quality.
2.Cutting unit moving controlled by step motor which is more stable.
3.Adopted servo synchronous tracking cut system make cutting edges more smooth.
4.Equipped with 16 layers integral type paper reel stand have hoist paper lifting device,Equipped with 16 layers double sides spraying type gluing unit.

Video

Machine data:

Machine name:Servo controlled paper tube making machine

Machine model:PPD-SCPM16

Paper Layer:16 Layers

Inner Diameter:50-75mm

Wall Thickness:1-10mm

Winding Speed:1-25meters/min

Winding Nose:Four noses double belts

Length Fixing:By Encoderr

Cutting Length:500-5000mm (speed will be low when cutting length less than 1000mm)

Gluing Way:Double sides

Shaft Fixing:by Flange

Speed Control:By Inverter

Operator:1-2 persons

Working Air Pressure:0.6Mpa

Power Supply:380V,3Phase,50Hz

NOTE:ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT
