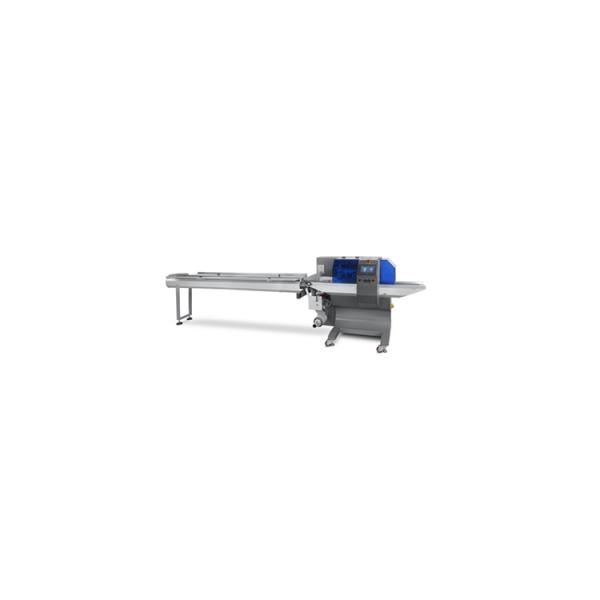

Our Professional Products 4 Side Seal&Pack Machine

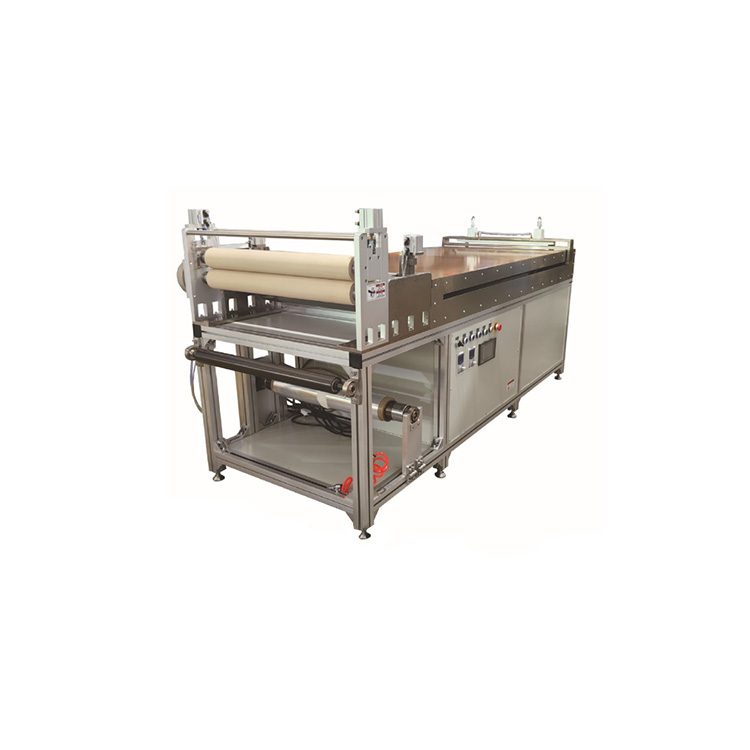

Plaster coating machine

PPD-PC1000

Plaster coating machine is the first process of the plaster patch production line developed and produced by our company.This machine evenly applies the plaster onto the cloth,and the surface of the applied plaster is smooth,flat, uniform and shiny.
This machine is an ideal choice for producing plaster patches.

Features：

1. The plaster conveying system and coating speed adopt an electronic synchronous control system to synchronize the adhesive amount with the host, ensuring stable and reliable adhesive amount.

2. The anti sticking roller is manufactured using ion spraying technology and has a good anti sticking effect.

3. Winding method: double rewinding, one winding, magnetic powder tension control, pneumatic shaft lifting, automatic calibration

4. Maximum amount of sol in the tank: 200KG.

5. The inner wall and outer wall of the mixing tank are made of stainless steel.

Main data:

Machine name:Plaster coating machine

Machine model:PPD-PC1000

Power: 20-40KW.

Working width: max 1000mm.

Jumbo roll width:max 1100mm.

Plaster glue applied ranges from 20 to 200 g/m2.

Coating speed: 5-30m/min.
