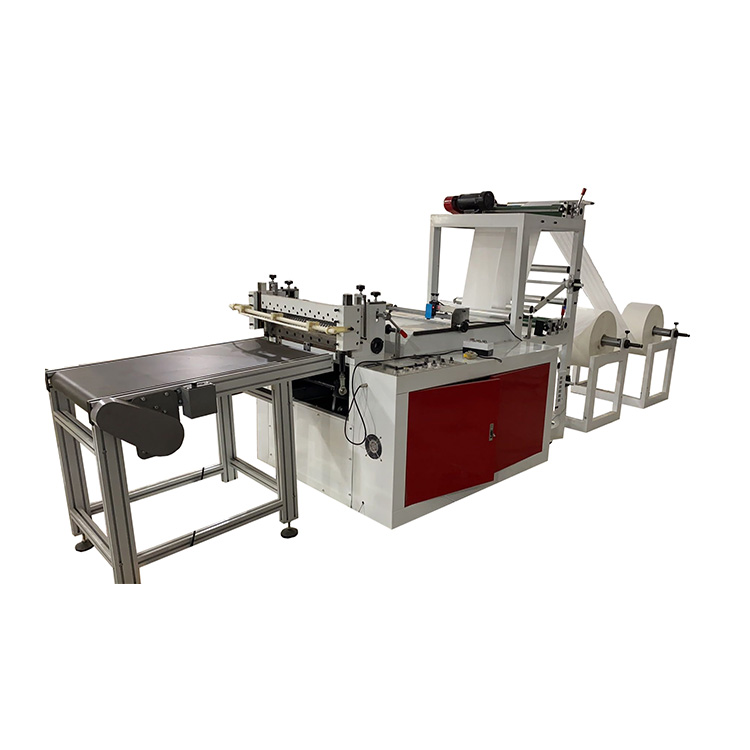

Double capacity silicon paper sheeter

PPD-DCPS600

Double capacity silicon paper sheeter is our latest model suitable for horizontal cutting of roll materials such as silicon paper,baking paper,nonwoven fabrics,gold and silver cardboard, plain rainbow paper,positioning laser transfer paper,white paper,plastic sheet,pvc film,pet film etc..

Features:

1.PLC touch screen control,HMI operation, and dynamic display;

2.The fixed-length control is controlled by an imported stepping motor system,automatic identification photoelectric switch adopts the function to ensure the cutting accuracy.

3.Machine is easy to use it and convenient feeding.

4.Additional function stacking conveyor belt.

5.Double capacity raw material,the production is two times of the traditional model.

Machine data:

Machine name:Double capacity silicon paper sheeter

Cutting width:max 600mm

Cutting length:max 1200mm

Unwinding diameter:max￠600mm

Cutting speed:max 50m/min and two times produciton speed

Cutting accuracy:±0.2mm

Total power:4KW

Machine weight:1000KG
