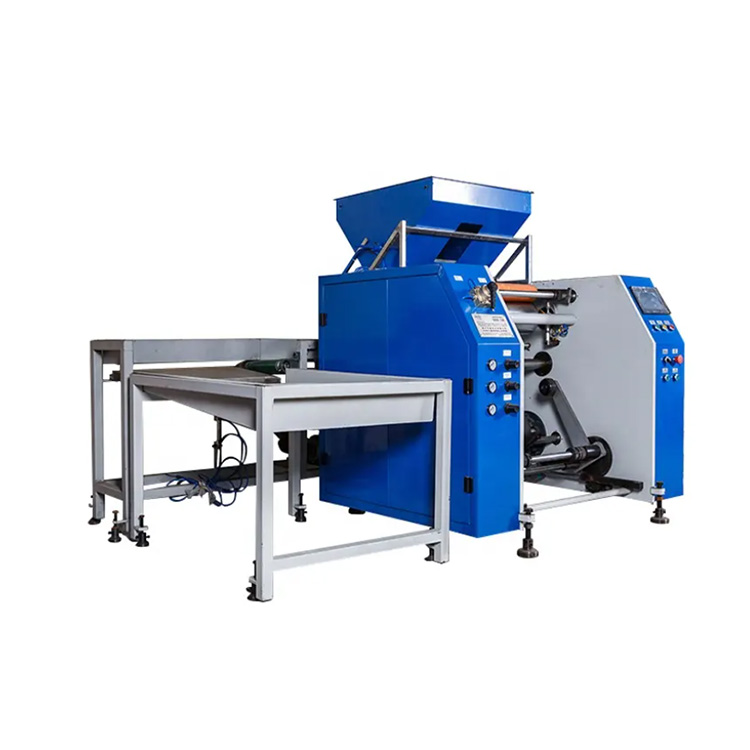

Automatic single shaft electrostatic adsorption cling film rewinder

PPD-ASEA450

Automatic single shaft electrostatic adsorption cling film rewinder is an upgraded and developed version of our company's automatic single station cling film rewinding machine. The traditional single station cling film rewinding machine uses air blowing to blow the film onto a paper tube and then performs automatic rewinding. After upgrading the blowing function to electrostatic adsorption,machine will use electrostatic adsorption to attach the film to the paper tube and then rewinding.The adjustment of the machine's rewinding will become simpler and more convenient.

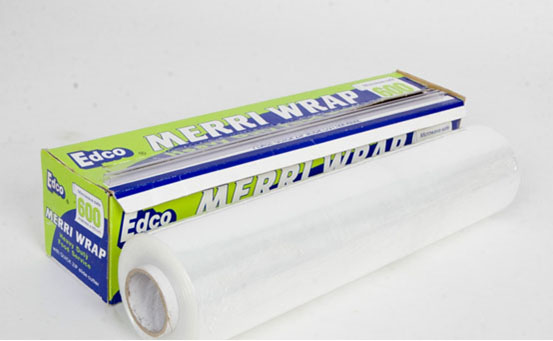

This device is an ideal choice for rewinding small rolls of PE cling film rolls,PVC cing film rolls etc..

Features:

1.PLC,frequency converter control system,high degree of automation.

2.Manual human-machine interface and input interface display,easy to operate,convenient for fault inspection.

3.Automatic tube removal,core replacement,cutting and product roll dropping, cylinder linked material rack ensures that the finished product is free of scratches.

4.Electrostatic adsorption function makes the machine simpler and more convenient.

Machine data:

Machine name:Automatic single shaft electrostatic adsorption cling film rewinder

Machine model:PPD-ASEA450

Big roll width:max 450mm

Big roll ID:3inch(76mm)

Big roll OD:max 400mm

Small roll widthl:max 450mm

Small roll ID:25/30/35/38mm(option)

Small roll length:1000meters(option)

Machine speed:max 900meters/min

Voltage:220/380/415v,3ph
