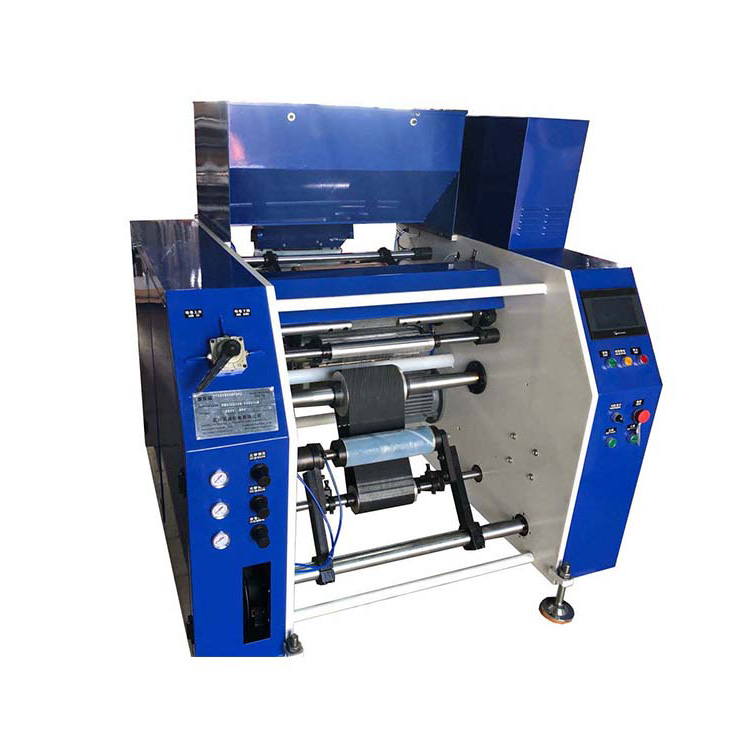

Automatic 4 shafts cling wrap film rewinding machine is developed and designed by our company on the basis of the single shaft cling wrap film rewinder and the 5 shafts cling wrap film rewinder. Automatic 4 shafts cling wrap film rewinding machine combines the advantages of the single shaft cling wrap film rewinder and 5 shafts cling wrap film rewinder.
Automatic 4 shafts cling wrap film rewinding machine can produce small rolls with a product length of 300 meters. This machine is faster than the single shaft rewinder. Compared with 5 shafts rewinder, this machine can rewind product rolls with a length of 300 meters, and can also produce products with a width of 300-450 mm, which is more applicable.
Main features:
1.4 shafts rewinding product, high production efficiency.
2. Color touch screen setting parameters,simple machine operation.
3. The product width is adjustable, and is suitable for rewinding products with a width of 300-450mm.
4. Full automatic machine,automatic paper tube changing,automatic rewinding, automatic pushing out of products.
Machine data:
Machine name: Automatic 4 shafts cling wrap film rewinding machine
Machine model:PPD-4S450
Mother roll width:300-450mm
Mother roll inner diameter:3inch(76mm)
Mother roll outer diameter:max 400mm
Baby roll width:300-450mm
Baby roll inner diameter:30/35/38/40/50/76mm(option)
Baby roll length:5-300meters
Speed:max 600rpm/min
Voltage:220/380/415v,50Hz (option)
NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS CUMTOMER REQUEST.
