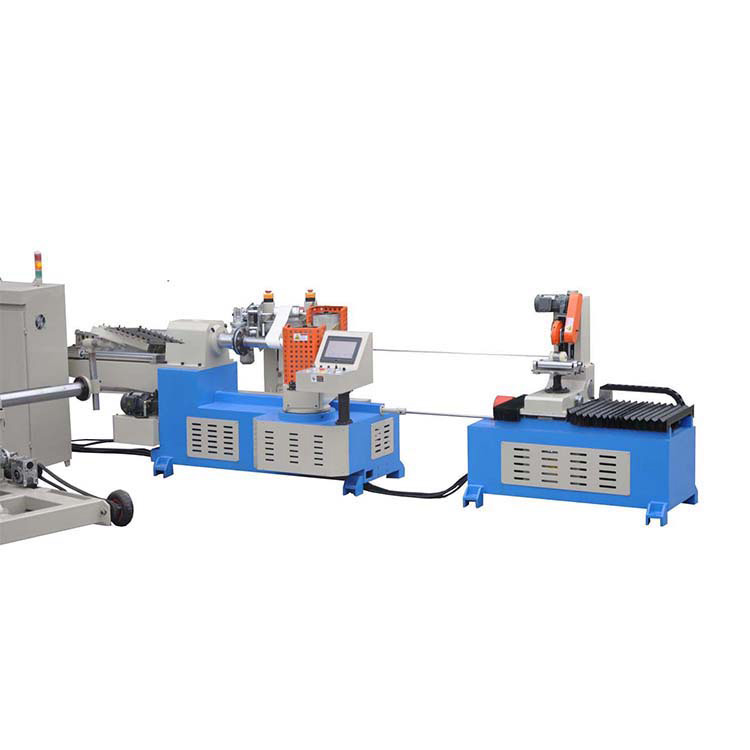

Automatic paper core making machine

Features:

1. The machine is equipped with a hydraulic belt tensioning device with a belt tension sensor and a belt angle sensor to automatically adjust the belt tension and angle.

2. With dual PLC control system, IO output control and functional operation are controlled separately to improve cutting response speed, and cutting length control is more accurate than ever.

3. Configure the new operation panel and large-size color touch screen man-machine interface operation.

4. With multi-function bottom paper supply device, automatic paper break function.

I.Parameter

Number of layer:3-8 layers

Max-diameter:120mm

Min-diameter:20mm

Max-thickness:3mm

Min-thickness:0.8mm

Mandrel fixing way:Flange & tightening

Rewind nose:Two noses one belt

Cutting way:8 blades

Gluing way:double side

Fixing length way:Encoder

Operator :1-2person

Production speed:3-20M/Min

II.Size (mm)

Machine size:6300mm*1700mm*2000mm(L*W*H)

Wheel hub diameter:215mm

Wheel hub height:400mm

Min tread:750mm

Max tread:950mm

Total weight:4200kgs

III.Drive system

Mainframe power7.5KW

Max rotating speed of wheel hub47r/min

Wheel hub output torque1360N.m

Chain type12A*2

Wheel hub type2 wheels
