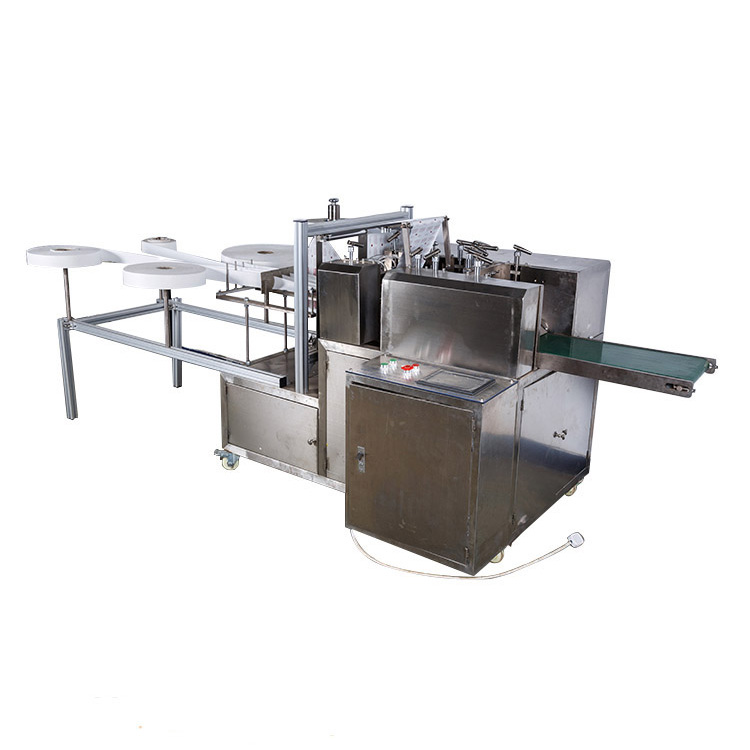

Automatic alcohol prep pad packaging machine

Features:

1:Machine is easy to operate, stable performance,high output.

2:PLC touch screen, it adopts highquality electrical appliances and touch human-machine interface.The parameter setting is convenient and quick,fault self-diagnosis function,and the fault display is clear at a glance.Convenient for function adjustment and technical upgrade,never falling behind.

3:Temperature independent PID control,better suited to various material envelopes.Positioning stop function.

4:The high-sensitivity photoelectric eye color tracking makes the sealing and cutting position more accurate.

5:The rotating system is simple,the work is more reliable,and the maintenance is more convenient.

Process flow:

Raw materials loading → folding → cut → add liquid → bag making → bag into → seal → cut → package finished product delivery. (can be multi-folded)

Machine data:

Model number:PPD-2R280

Raw material nonwoven specifications: 60mm × Φ600mm(as buyer requirement)

Raw packaging film inner core size: 76mm(3inch)

Nonwoven unfold size: 30mm ×60mm (as buyer requirement)

Nonwoven folding size: length 30mm × width 30mm; length 30 × width 60mm (as buyer requirement)

Packaging size:50mm× 50mm (as buyer requirement)

Production capacity: 220-240pcs/minutes(max 400 pcs/min)

Power: 2.6Kw

Voltage:220v,50Hz (option)
