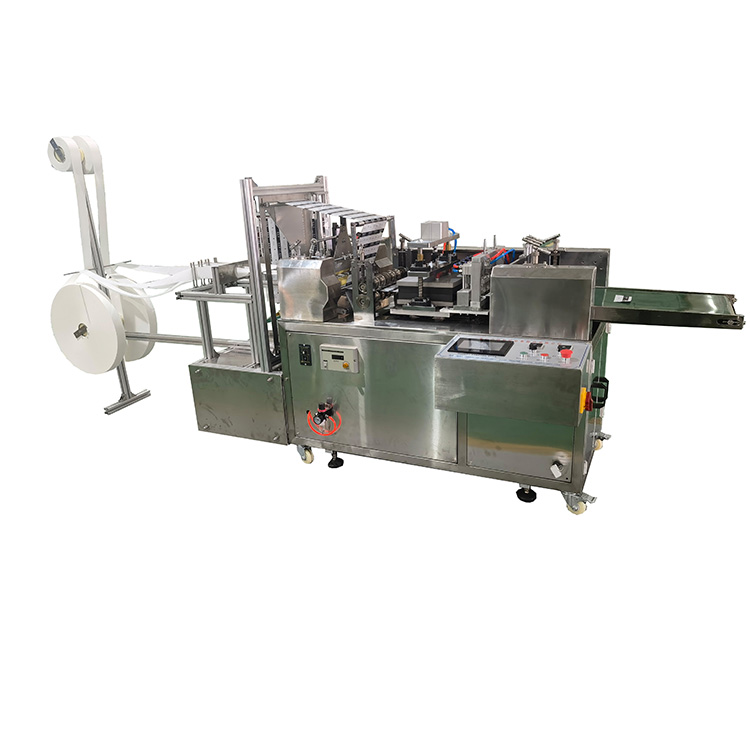

4 lanes alcohol prep pad packaging machine with V type easy tear opening

PPD-4APPV320

4lanes alcohol prep pad packaging machine with V type easy tear opening is our customized alcohol prep pad packaging machine designed by our company for our customers. This packaging machine is developed by our company based on the original 4lane alcohol swab packaging machine combined with the technology of 2lanes 4side sealed glove packaging machine.This machine is specially customized for 4side sealing plastic packaging film.One machine produces 4 side sealed alcohol prep pad in one, with a customized V type easy to tear opening function,making it convenient for customers to tear open plastic packaging bags.

Features:

1.Dedicated to producing aluminum plated plastic film,pure aluminum plastic packaging bags,also suitable for traditional paper aluminum packaging films and most heat sealable packaging films.

2.Reciprocating flat pressure heat sealing, tight sealing, beautiful bag shape, equipped with standard V-shaped easy to tear mouth.

3.Color touch screen operation setting parameters, servo drive, PLC control overall equipment operation.

Working process:

Load non woven fabric and packaging film roll→Non woven fabric folded vertically (or not folded)→Cutting non woven fabric →Adding liquid→Non woven sheet output→Bag making packaging sealing →V type easy tear opening→Output packaged finished product

Machine data:

Machine name:4lanes alcohol prep pad packaging machine with V type easy tear opening

Machine model:PPD-4APPV320

Non woven unfold size:60x30mm

Non woven folded size:30x30mm

Non woven fold function:fold one time 2layers or not fold one layer

Non woven:rolls,30-60gsm, spunlace non woven,OD 600mm,width 60mm,ID 76mm

Packaging film:Aluminum plated plastic film,pure aluminum plastic film,alu foil paper and most heat sealable packaging film,OD 350 mm,ID 76mm

Speed:240-320pcs per min

Power:220v,50hz,7kw

Weight:500kg

Machine dimensions:2800mmx1300mmx1500mm(LWH)
