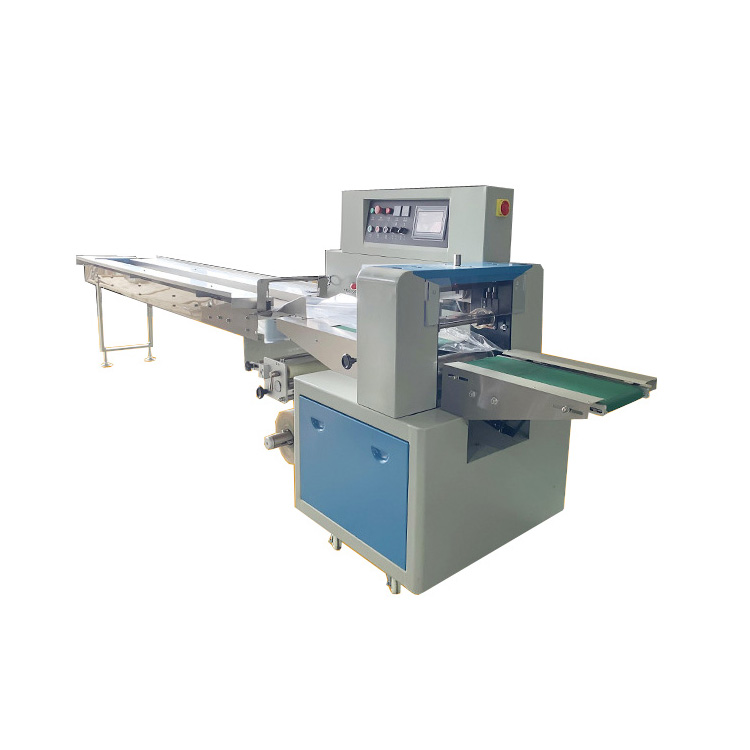

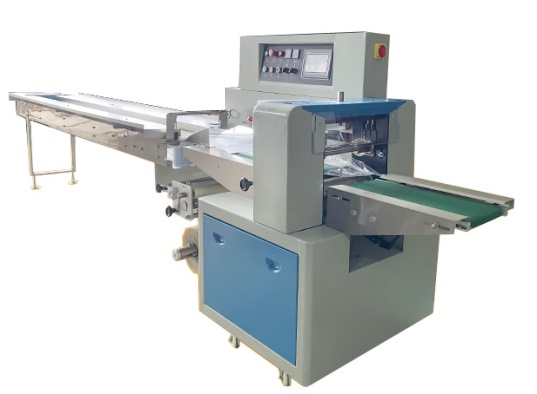

Flow wrap vegetable packaging machine

PPD-450X

Flow wrap vegetable packaging machine is our new design model to packaing the different of vegetables.Machine is easy to operate. All controls are realized by software, which is convenient for function adjustment and technical upgrade, the transmission system is simple, the work is more reliable, and the maintenance is more convenient.

1: Servo motor control, maintenance-free motor, high efficiency.

2: Intelligent programmable servo drive system device, and has a variety of different thread bus options.

3: High-sensitivity photoelectric color mark tracking, digital input of the sealing and cutting position, so that the sealing and cutting position is more accurate.

4: Temperature independent PID control, real-time view, convenient adjustment, and better application in various packaging fields.

Machine model: PPD-450X

Film width: max 450mm

Bag length: 150-450mm

Bag width: 50-180mm

Product height: max 80mm

Film roll diameter: max 320mm

Packaging rate: 40-150bag per min

Power: 220v 50hz

Machine weight: about 650kg
