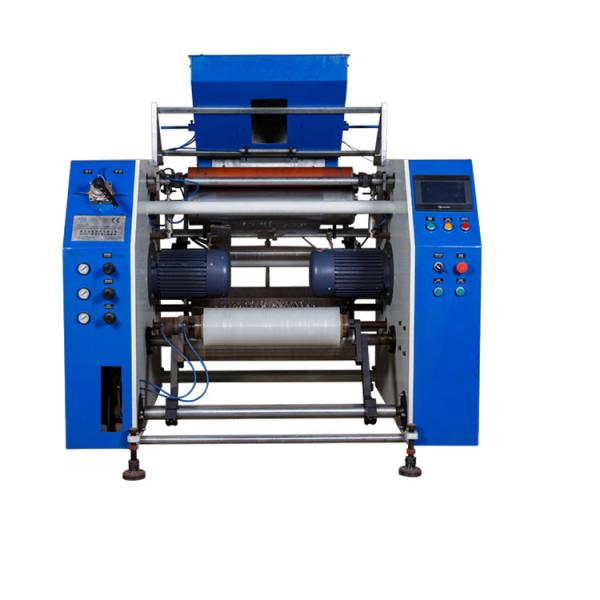

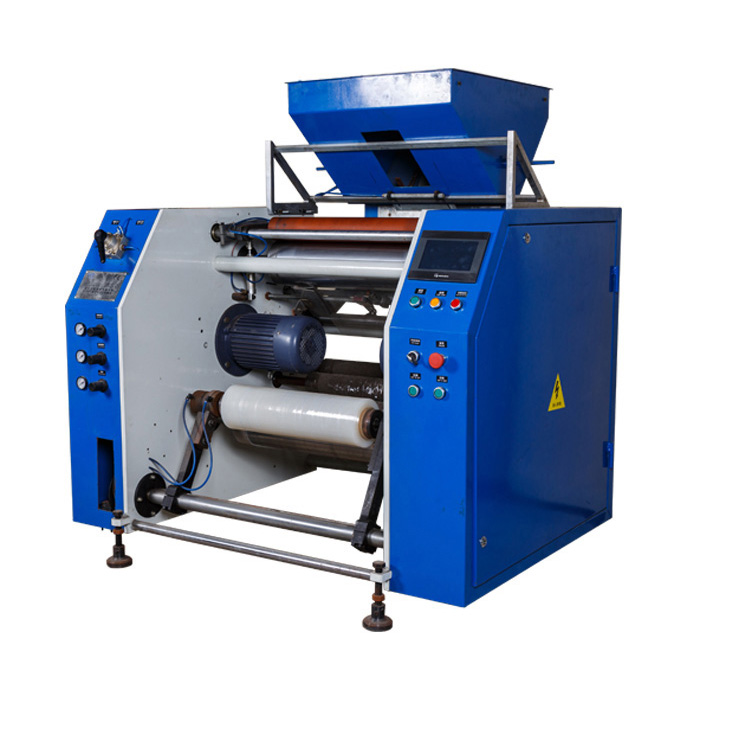

Automatic folding oscillating pre stretch film rewinder

Features:

1.Oscillating function and folding function are optional,customers can get different types of products

2.Multi functional machine, which can rewind pre stretched film and standard stretch film

3.PLC programmable controller intelligently controls the operation of the whole machine, machine setting parameters are simple

4.Stretching ratio of the pre stretched film is optional, economical and practical

Machine data:

Machine name: Automatic folding oscillating pre stretch film rewinder

Machine model:PPD-FOPRE600

Maximum width mother roll:600mm

Inner dia of mother roll:3inch

Outer dia of mother roll:max 400mm

Sub roll width:max600mm

Sub roll outer dia:200mm

Sub roll inner dia:2/3inch(option)

Pre stretch rewind speed:max 300rpm/min

Standard stretch rewind speed:max 600rpm/min

Voltage:220/380/415v,50Hz (option)

NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS CUMTOMER REQUEST.
